SPECIAL OFFER

ERFURT 800 tons

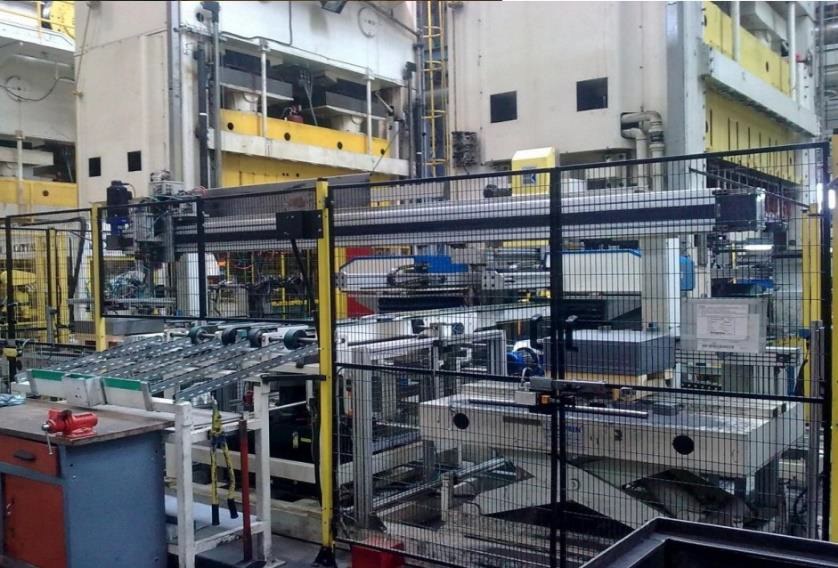

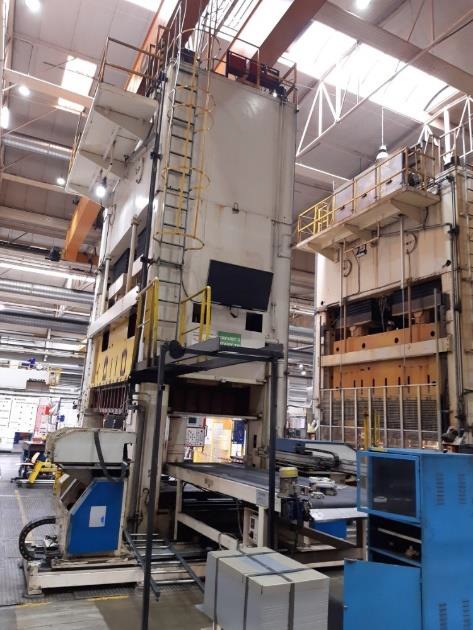

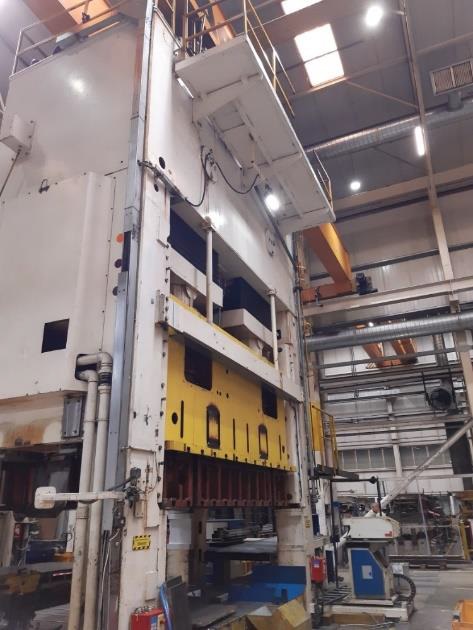

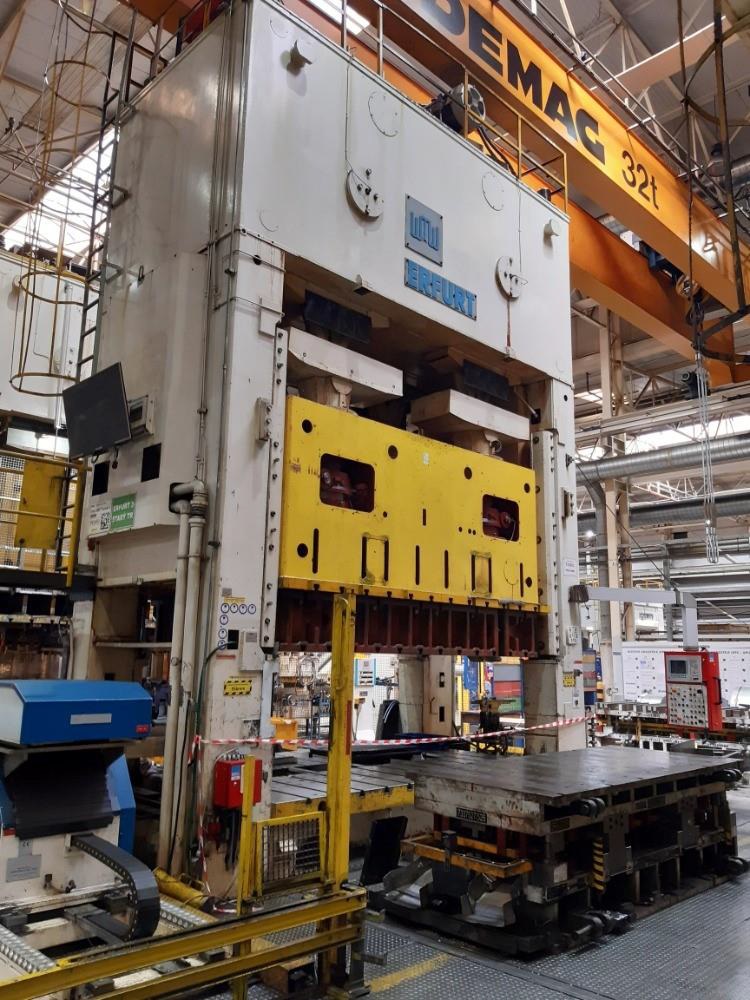

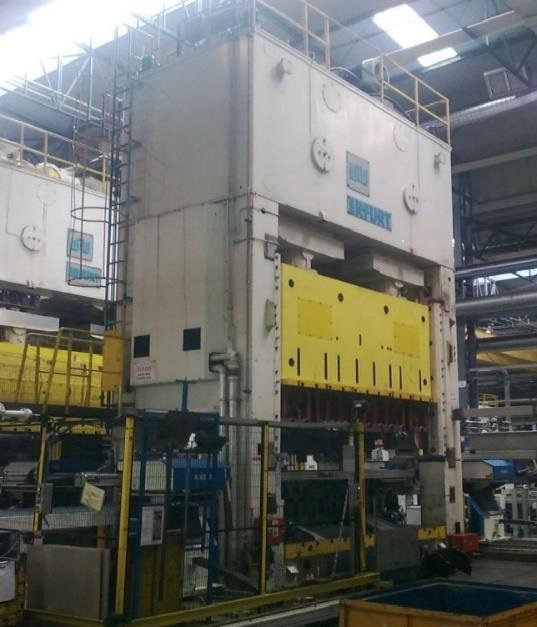

ERFURT PKzV I 800tons mechanic press with transfer unit and
platine feeder (clutch broken)
(SIEMENS S5)

Main Machine Data

1) Press (type):

Max Capacity / YOM:

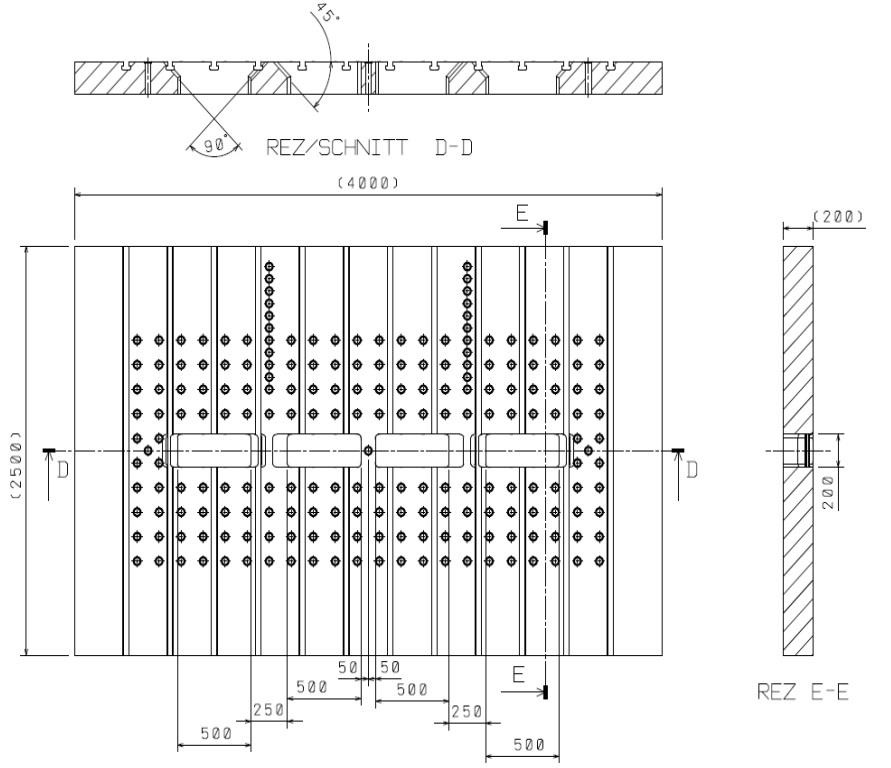

Bed size:

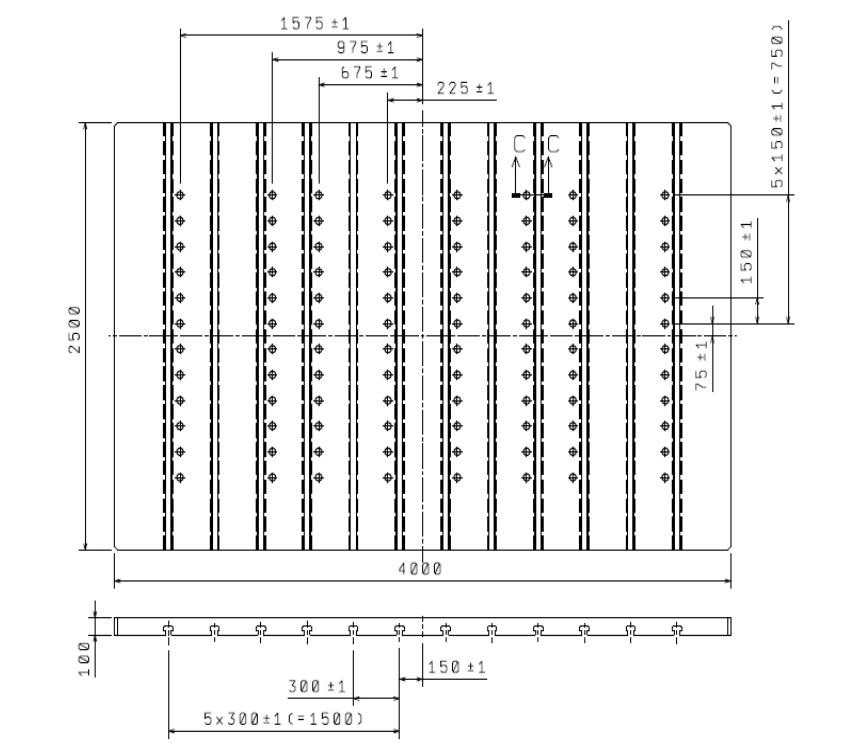

Ram/slide size:
Stroke:
SPM:
Slide-adjustment:
Max. die (SDAU):
Max. die weight:
(max. upper die):
Die location:

2) Transfer

Type of dies:
X-pitch (Feed):
Y-pitch (Feed):
Z-pitch (Feed):

Max. height from bolster:

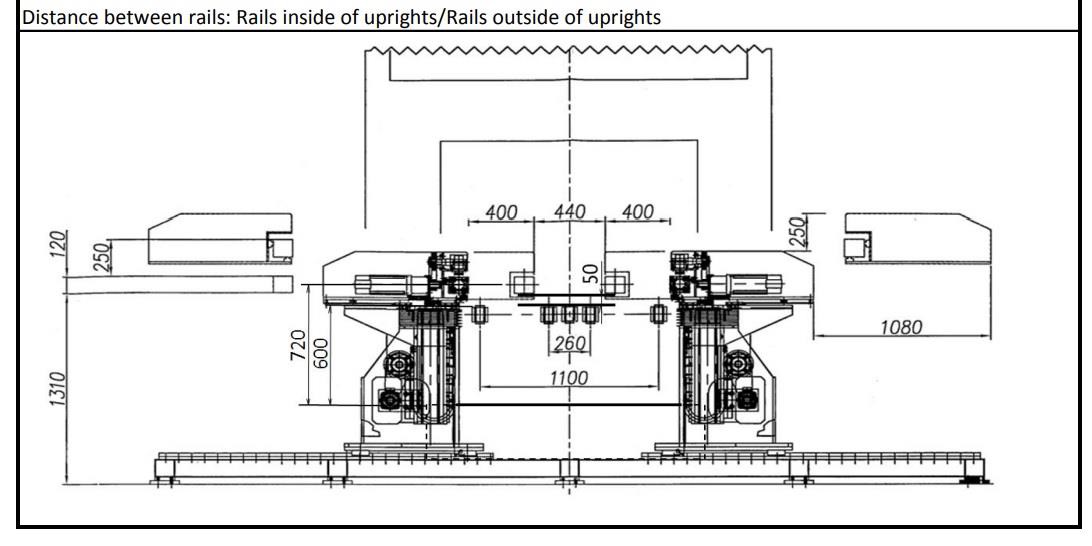

Max. distance between rails:

Min. distance between rails:

3) Platine feeder:

Min. feeding height:
Min. feeding height:
Min. feeding height:

Min. blank length (feed dir.):
Max. blank width (traverse):

Erfurt PKzV I 800 – mechanic excentric

800 tons / n/a
4.000 x 2.500 mm
3.950 x 2.500 mm
500 mm (fixed)
7 – 14
500 mm
1.700 mm
32.000kgs
(15.000kgs)
centering pins



Transfer / manual / progressive
1.000 mm
400 mm
250 mm

720 mm

1.600 mm / 3.420 mm

1.200 mm / 3.020 mm



650 mm
850 mm
250 mm

120 mm
280 mm

Comments:

• Press went out of production half a year ago.
• Principal will get a new press and was not willing to repair broken clutch.
• Press is fully functional other than the broken clutch.
• Press will be sold dismantled, loaded onto truck, unpacked.
